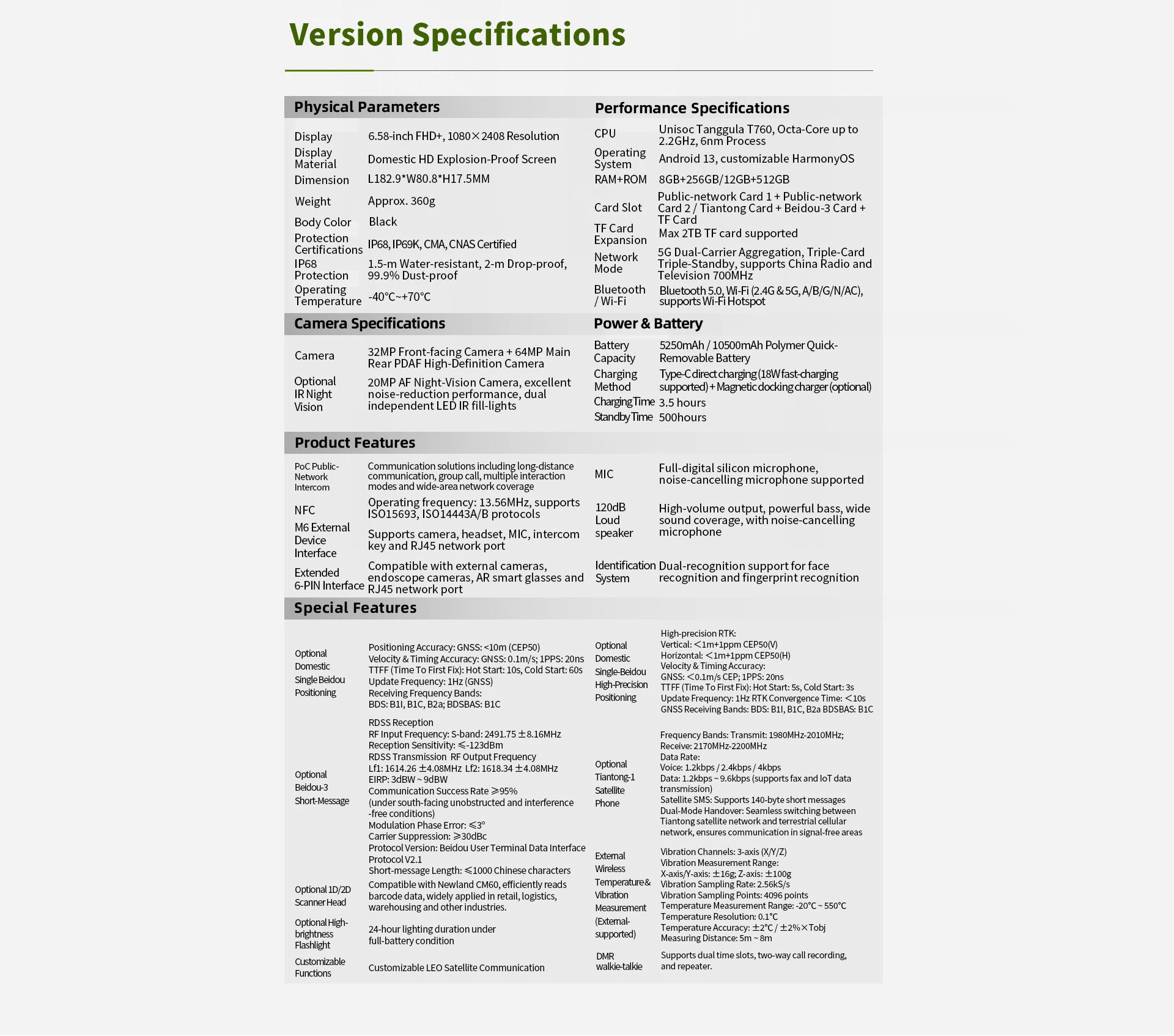

Basic Parameters | |
Model number | V3 |
color | green |

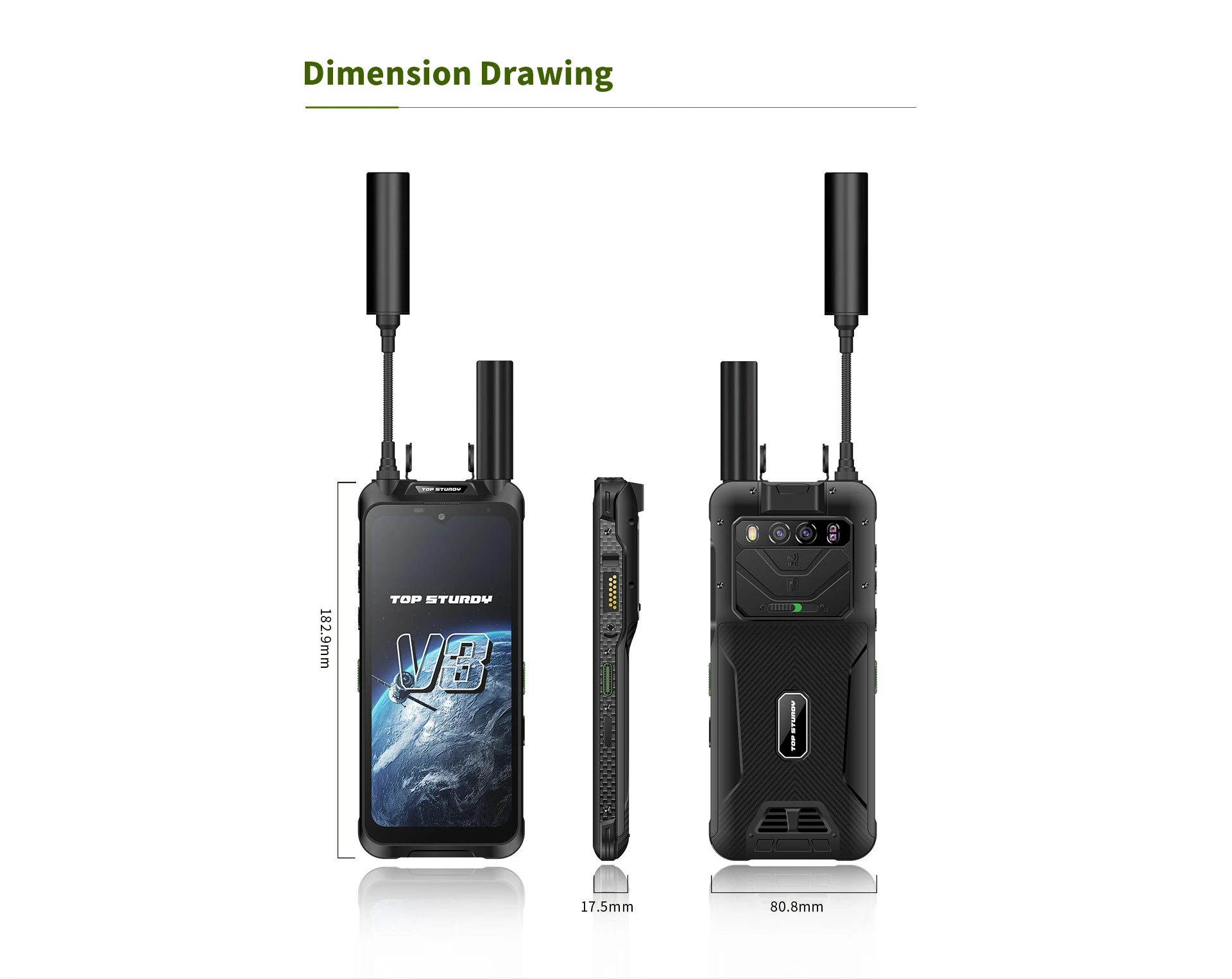

Size | 177.4 *81*19.3MM |
Industrial Design | straight bat |
| weight | 380g |

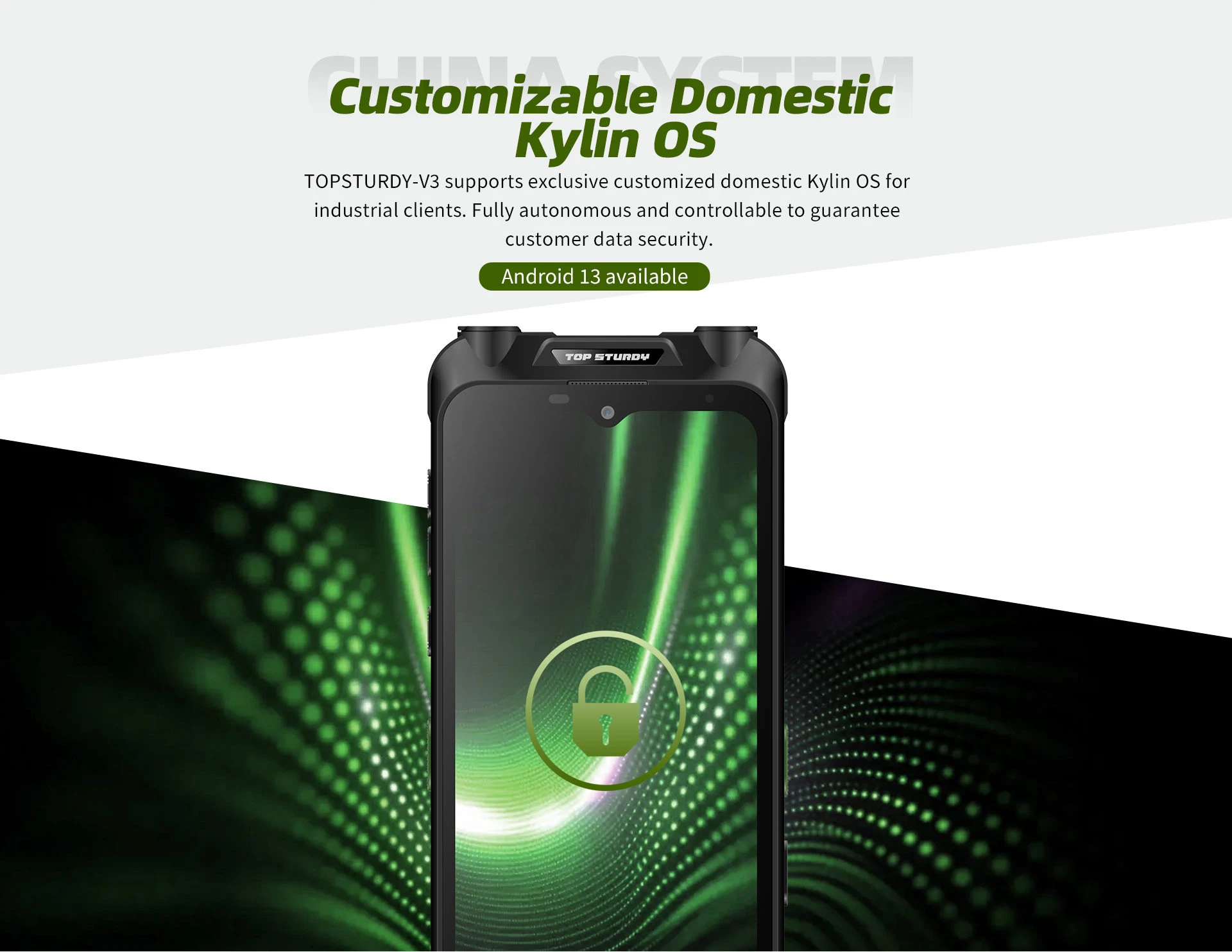

Operating System | Android11 |
CPU | Spreadtrum T760, 2.21GHz octa core |
input method | Incell 5-point touch control |
| Navigation method | GPS+Beidou+Glonass+Galileo |
Public network communication method | 5G full network (China Unicom, China Mobile, China Telecom) |
USB port | Type-C USB |

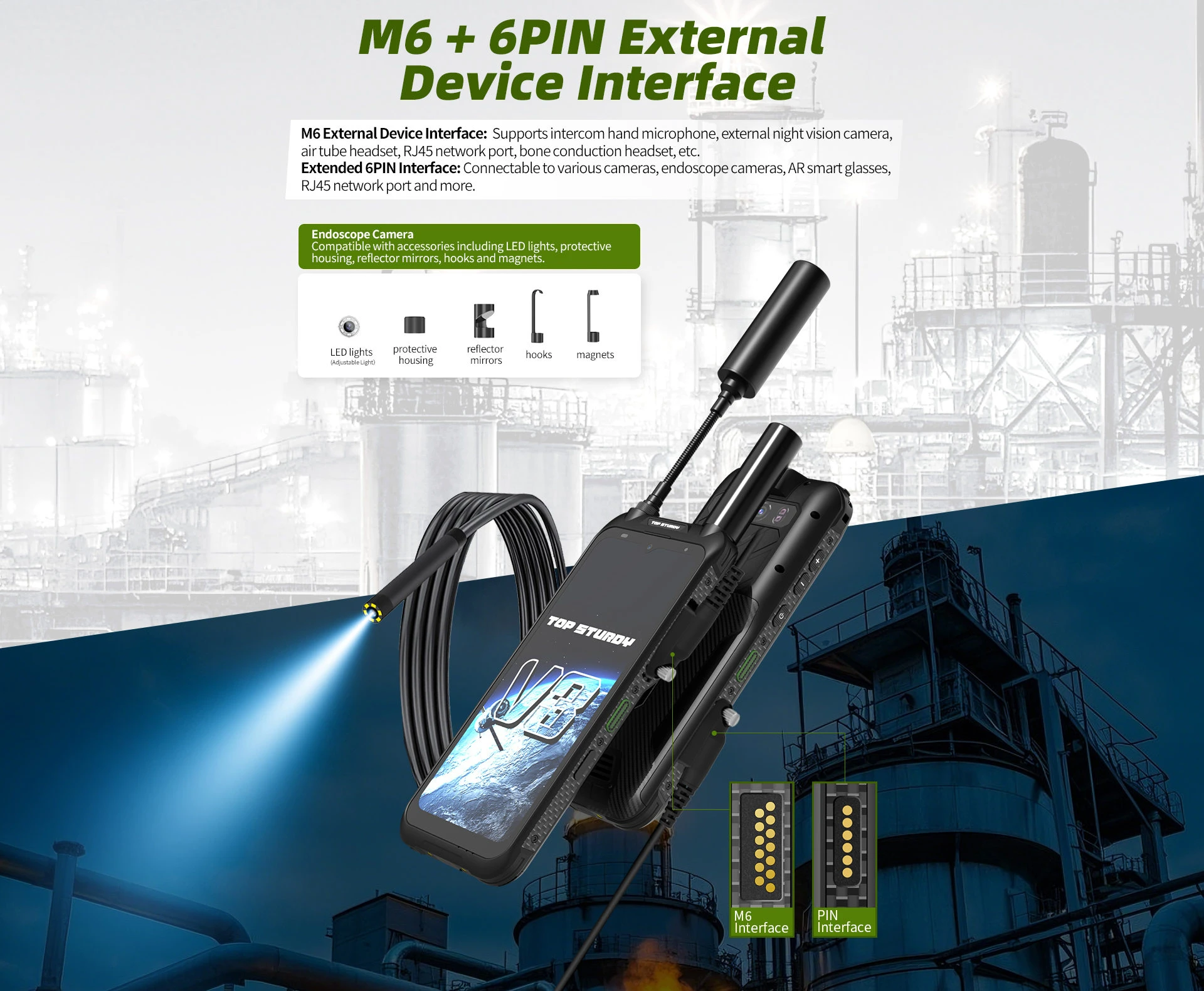

| extended interface | M6Expansion interface, supporting external night vision cameras, hand tags, RJ45， OTG |
| fingerprint | Support |
Continuous call time (screen off) | About 25 hours |
standby time | 700 hours |

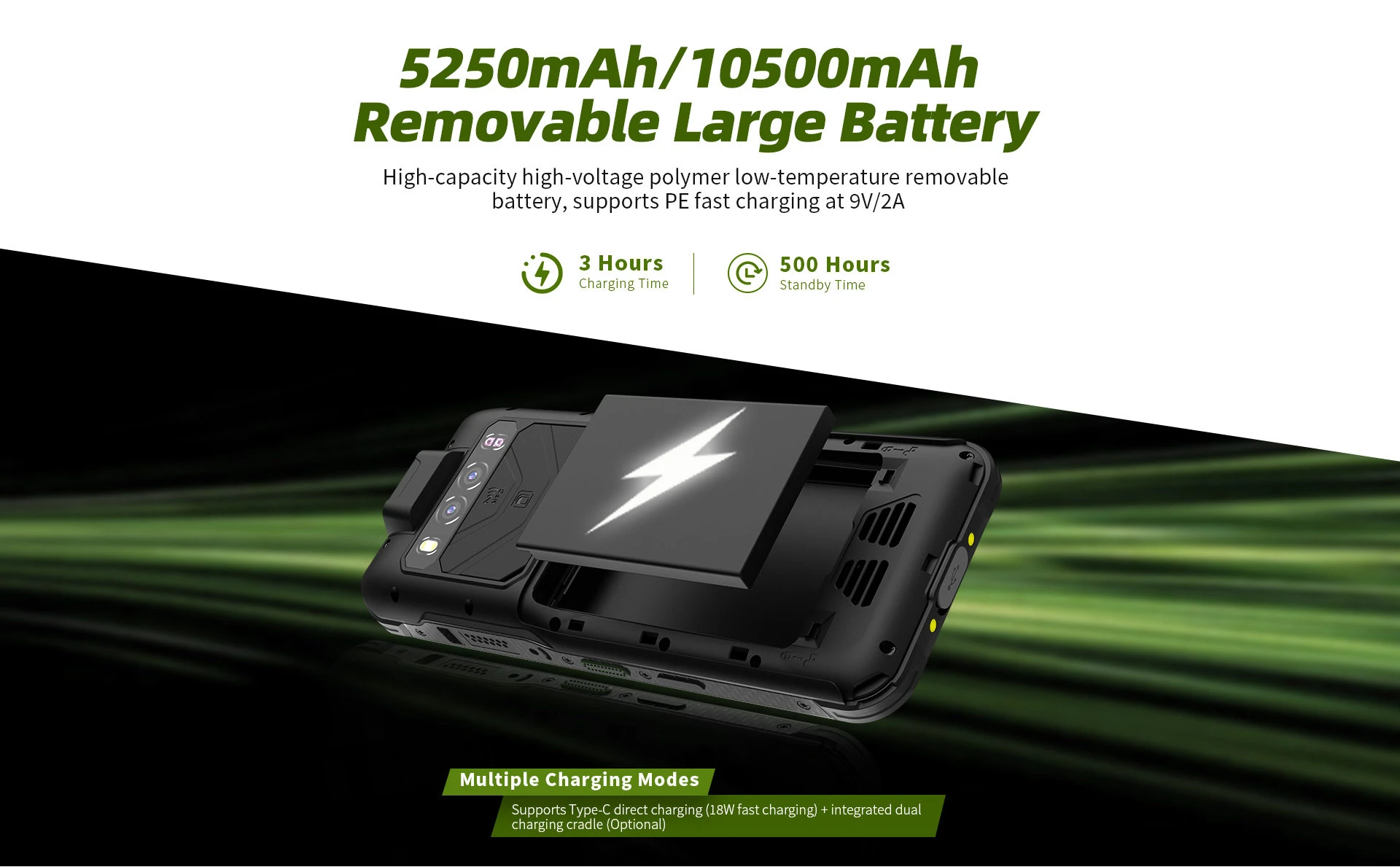

Battery capacity | 9000mAh |

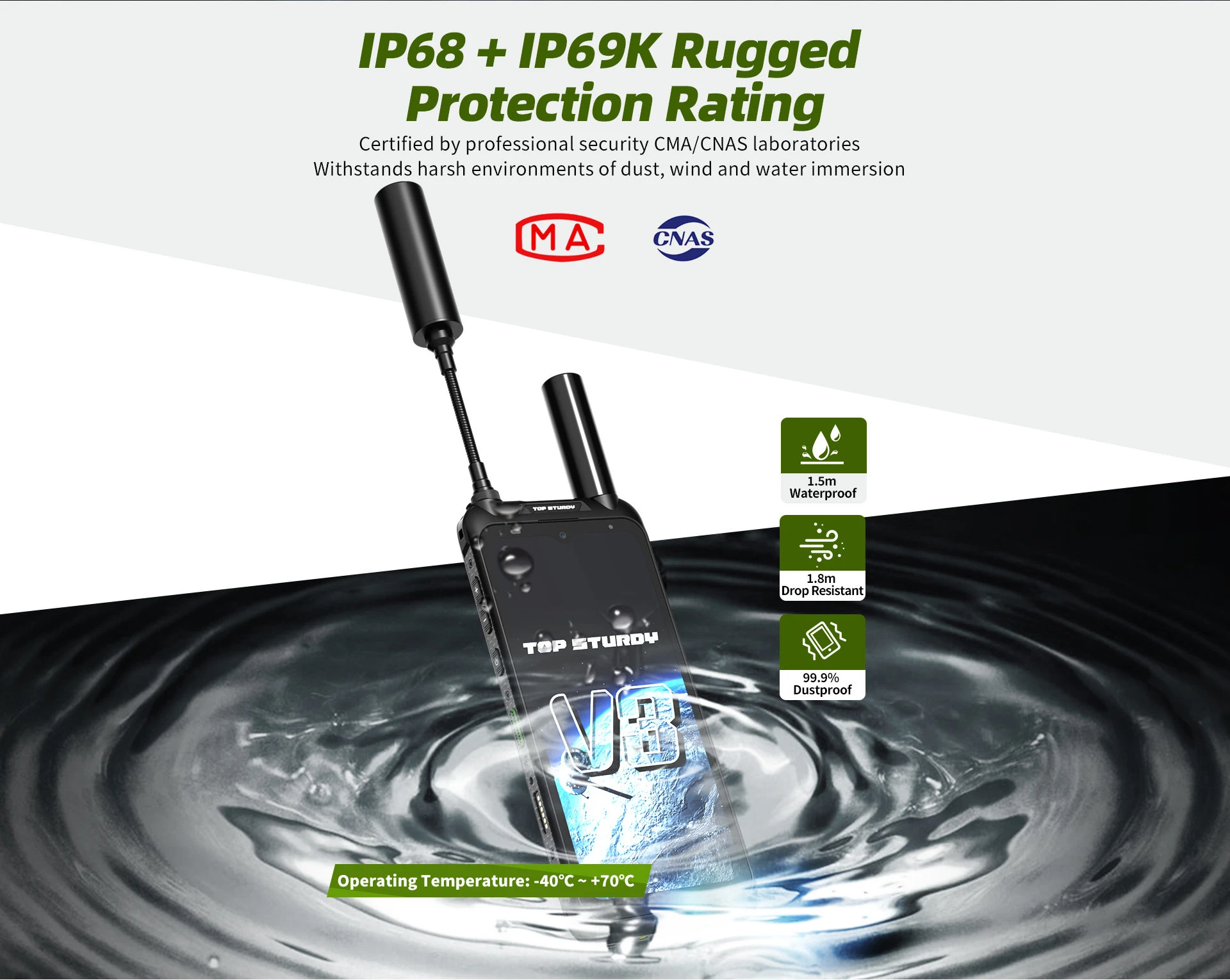

Protection rating | IP68 |

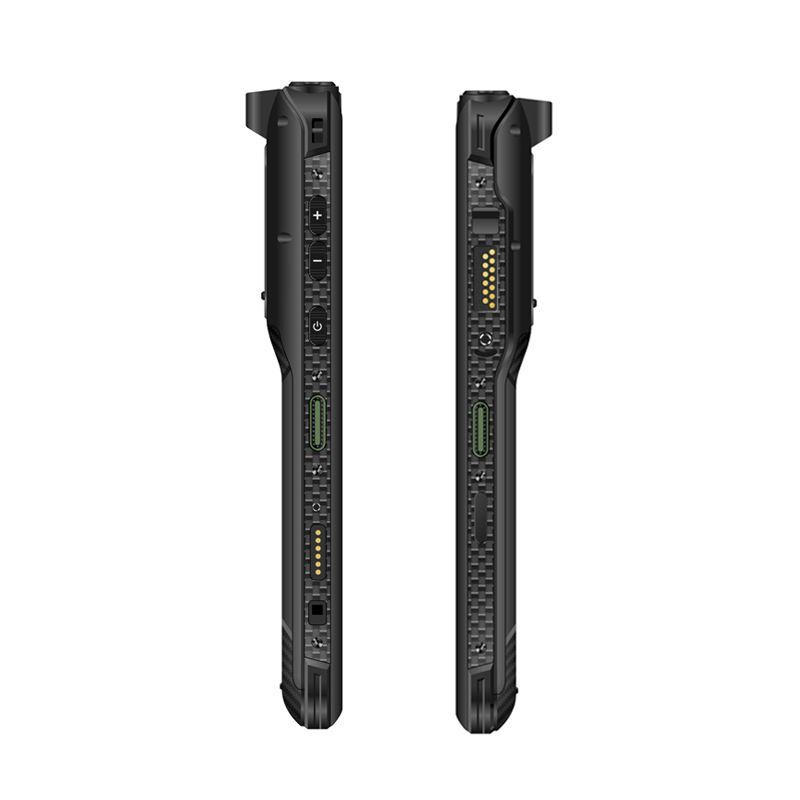

Button (physical button) | Volume key, power on/off key, PTT key, 2 FN keys, |
screen display | |
screen size | 6.0 inches |
resolution | TFT6 FHD+ IPS 1080*2160 |
touch screen | Incell touch screen/support glove touch |

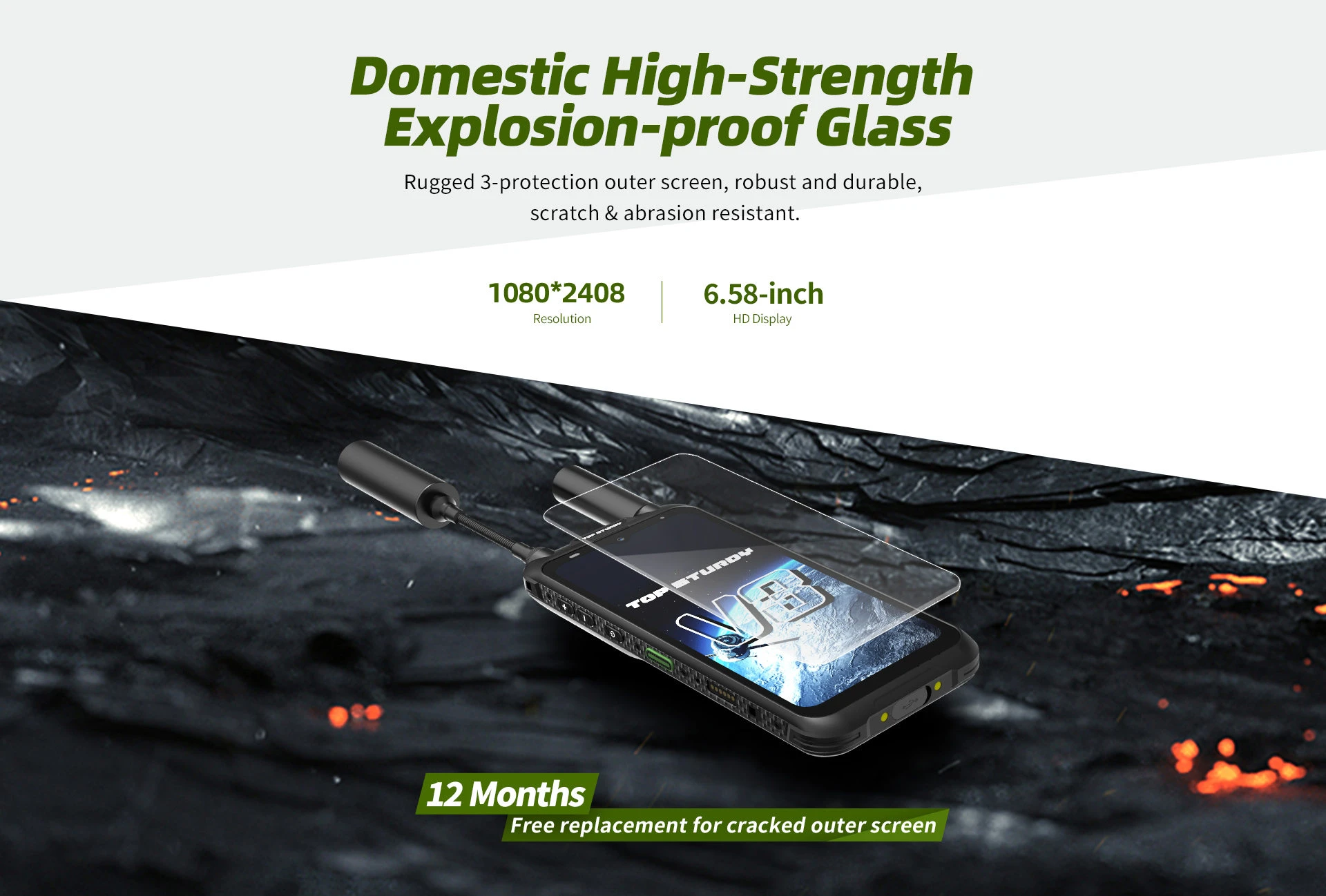

Appearance and Material | Corning fifth generation tempered glass from the United States |
sensor | |
Gravity sensor | Support |
| sensor | Support |
Distance sensing | Support |
acceleration | Support |
| light sensing | Support |
geomagnetism | Support |
| Gyroscope | Support |
| Air pressure | Support |
Storage function | |
Body memory | 256GB ROM |
RAM (Random Access Memory) | 8GB RAM |
Storage card type | Supports T-Flash memory card (128GB) |
network parameters | |
Public network standard | 5G full network |
Public network frequency | GSM：B2/B3/B5/B8 WCDMA：B1/B2/B5/B8 LFT-FDD: B1/B3/B5/B7/B8 LTF-FDD：B34/B38/B39/B40/B41(2515-2675MHz) 5G NR：n1/n41/n78/n28A/n5/n8 SRS: N41/N78 1T4R |
Public network operator | China Mobile/China Unicom/China Telecom/Radio and Television |
booth | Three out of two booth selection |
Camera function | |
Main camera | 48 million supports PDAF |
Front camera | 16 million |
Night vision camera | 24 million supports AF |
sensor type | CMOS |
Transmission function | |
WIFI | SupportWiFi (2.4g&5G, A/B/G/N/AC)， AP function, |
USB | Type-C port |
| M6 extension interface | Support for outsourcing labels, throat labels, endoscopes, night vision cameras,RJ45， OTGthread |
Bluetooth | Supports Bluetooth 5.0 (BLE) |

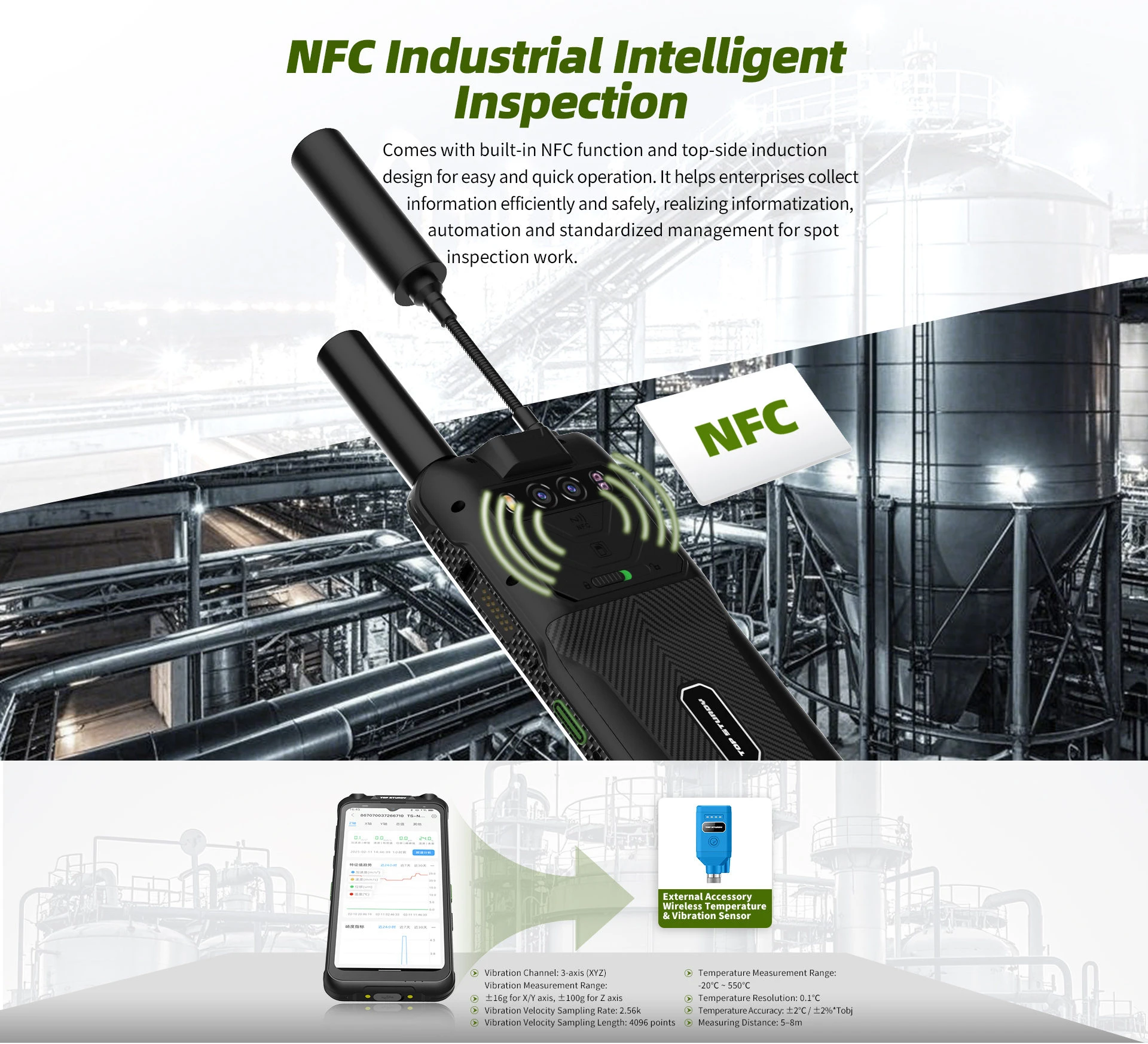

NFC | Support |
Optional features | |
DMR digital analog intercom | branchHolding 400-470MIntercom/2W |

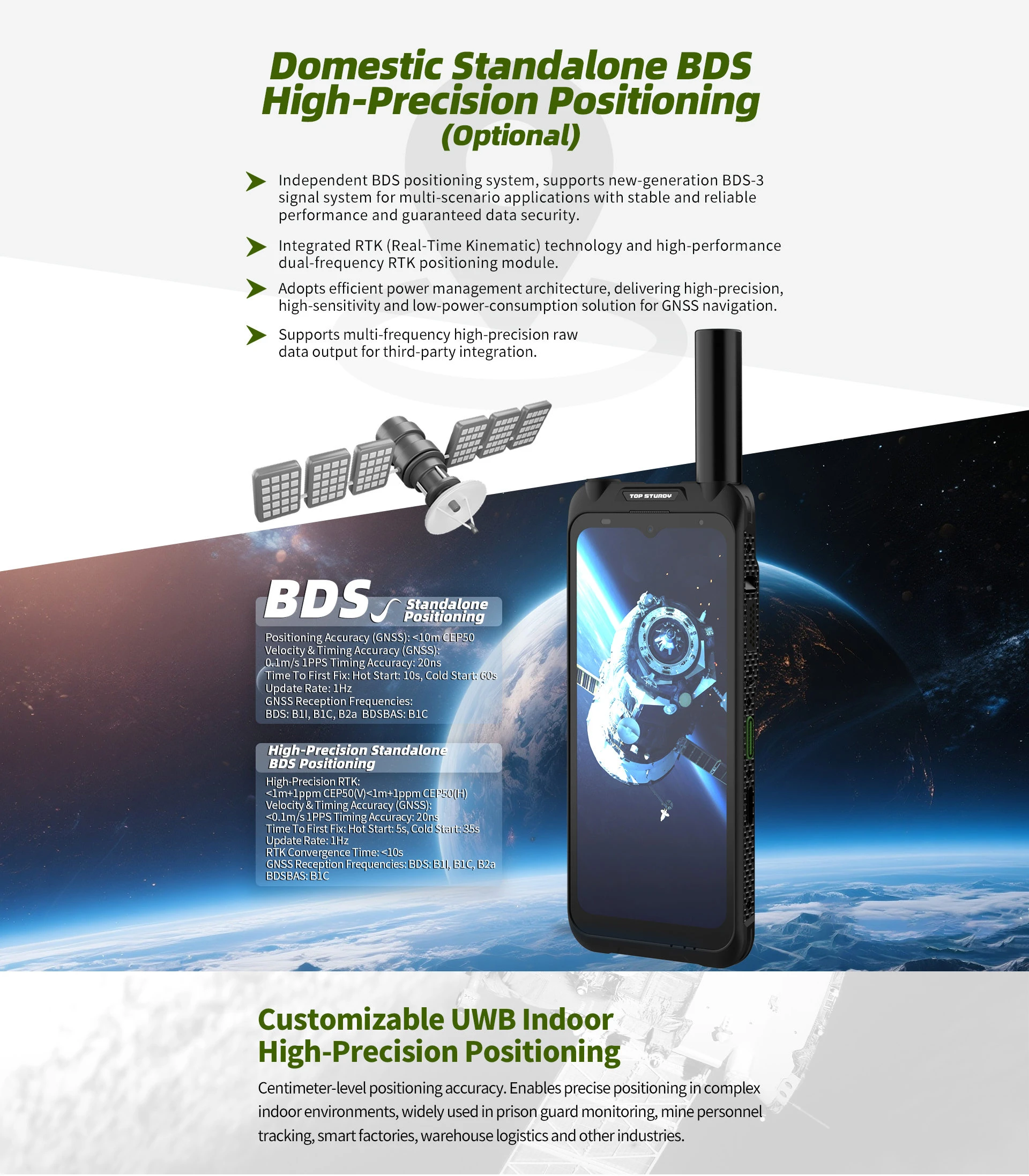

RTK high-precision | branchHolding domestically produced high-precision modules (Huada, Hexin Xingtong, Mengxin) |
| Thermal imaging | Support-20°—5fifty° Industrial temperature measurement, resolution 192*256 |
| Night vision camera | Support2400WNight vision |

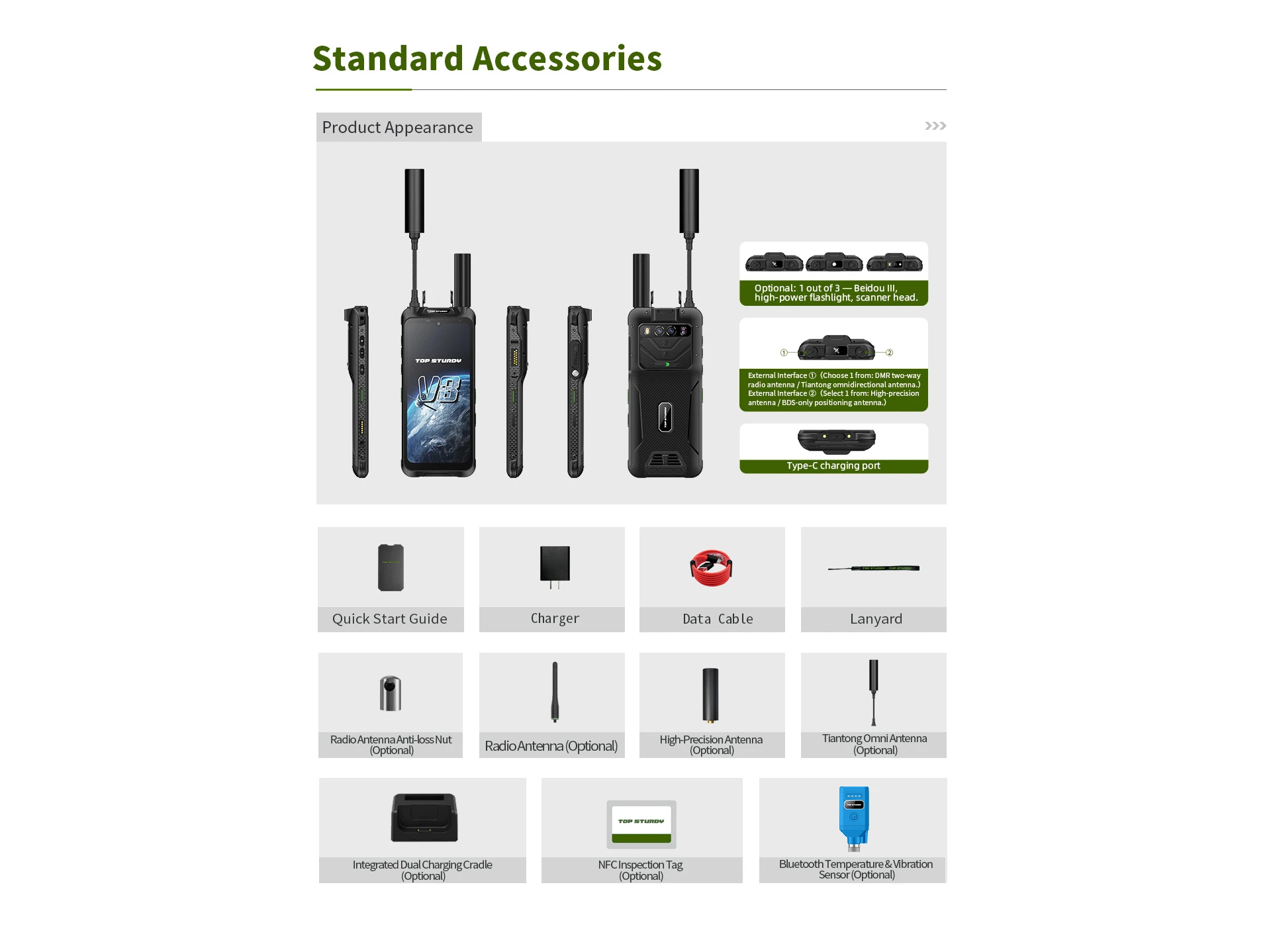

Accessories | |
charger | Standard 9V2A |
Charging cable | TYEP-C line |
Magnetic attachment | optional |
desk charger | optional |
Waist clip | optional |
