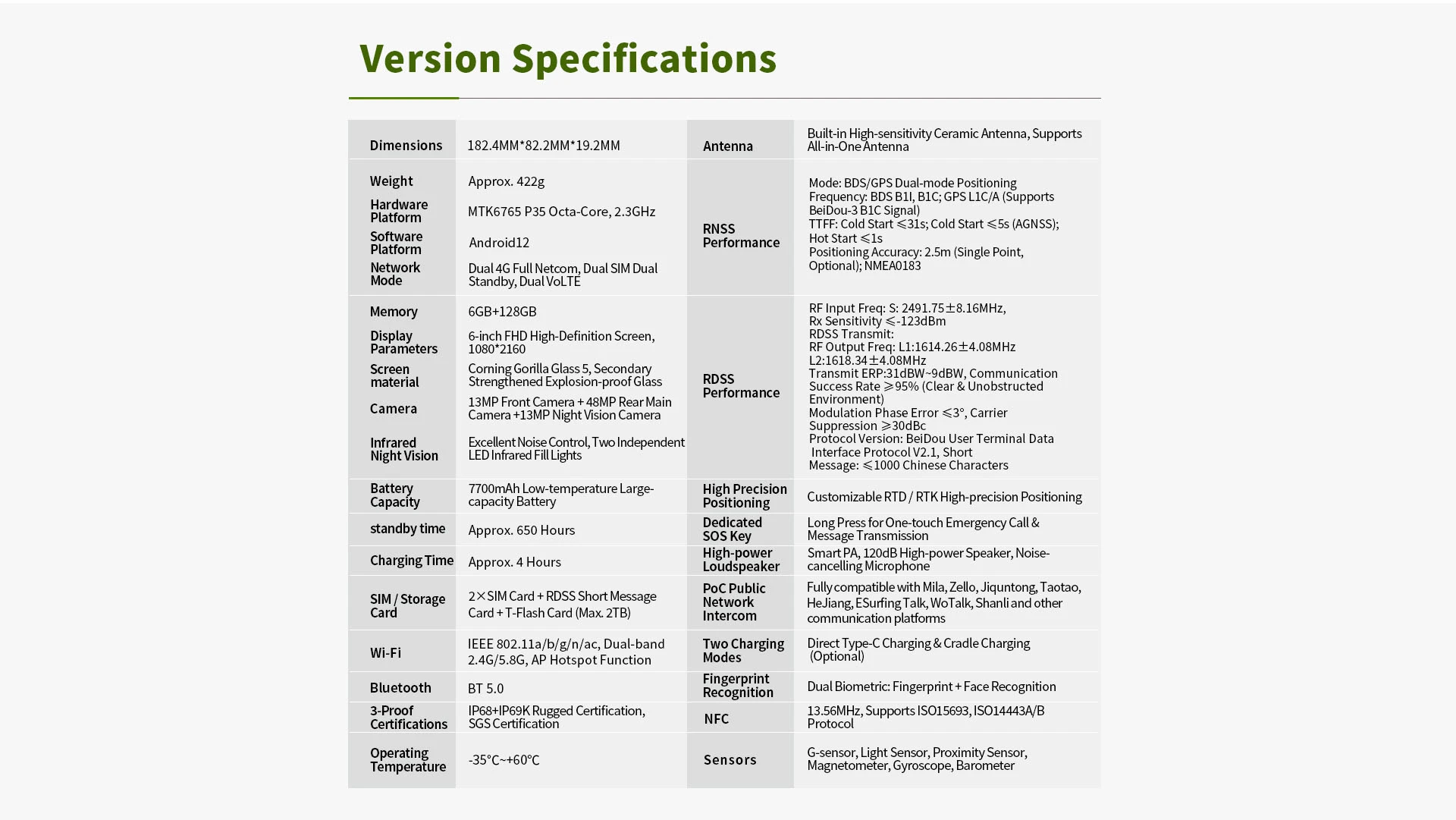

Basic parameters | |
model | V1 |
color | green/black |

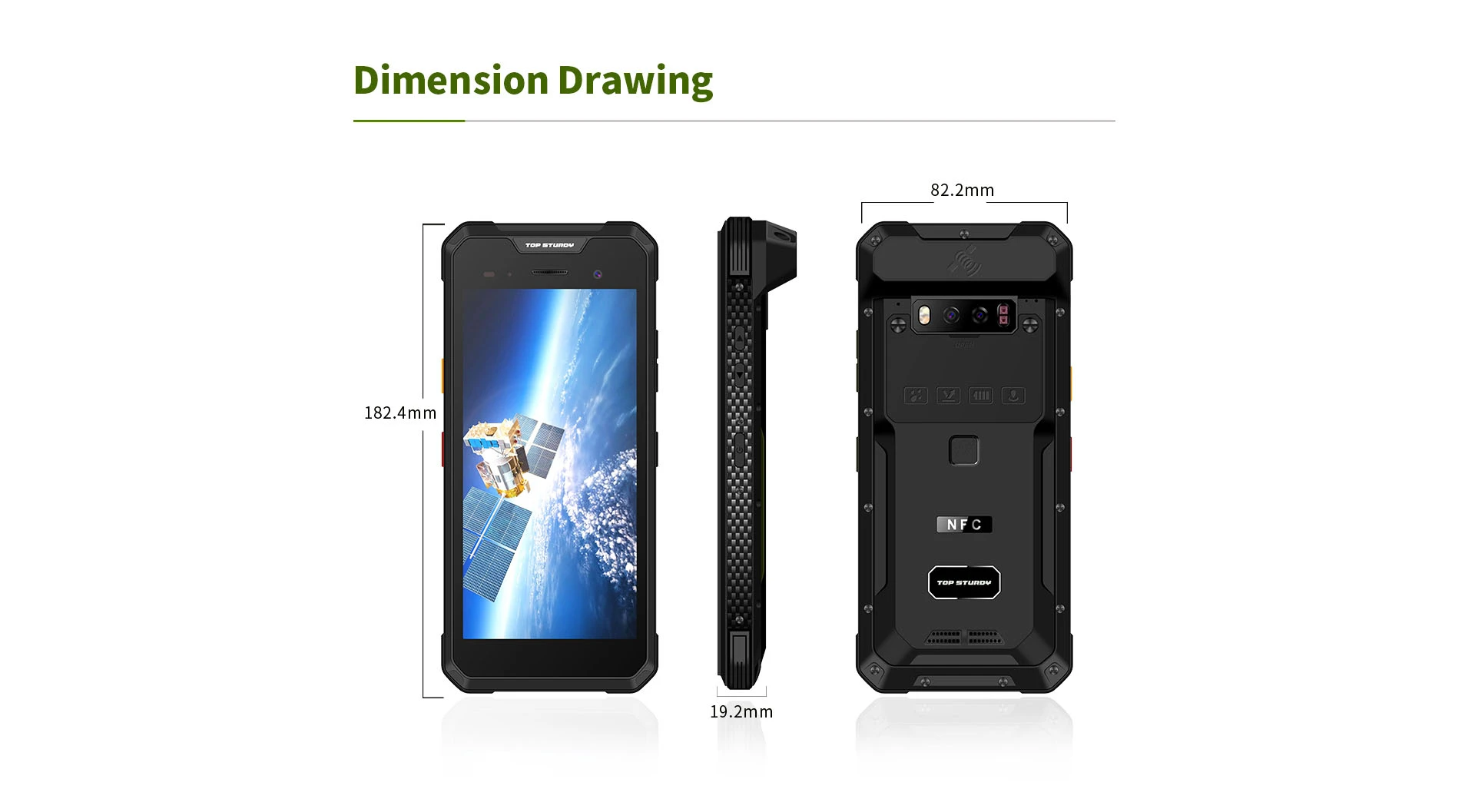

size | 181 *81*19MM |
Appearance design | Straight board |
operating system | Android12 |
CPU | MTK6765 P35 Octa-core 2.3GHz |
Input method | INCELL |
Navigation | GPS+Beidou, dual-mode positioning (domestic Beidou module) |
Public network communication method | 4G full network (China Unicom, China Mobile, China Telecom) |
USB interface | type-c USB |
fingerprint | support |
Continuous talk time (screen off) | about 20 hours |
Standby time | 600 hours |

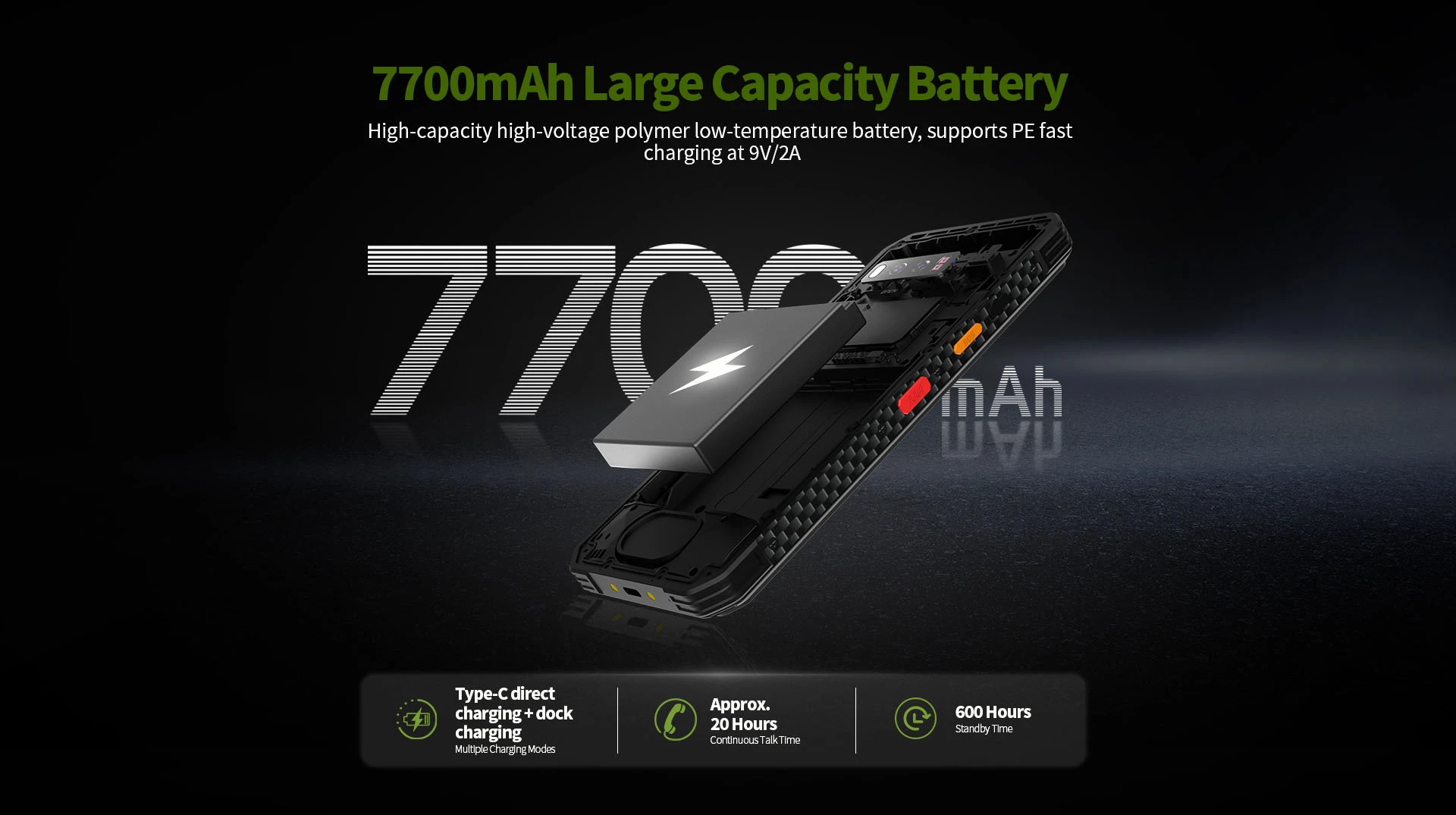

battery capacity | 7700 mAh |

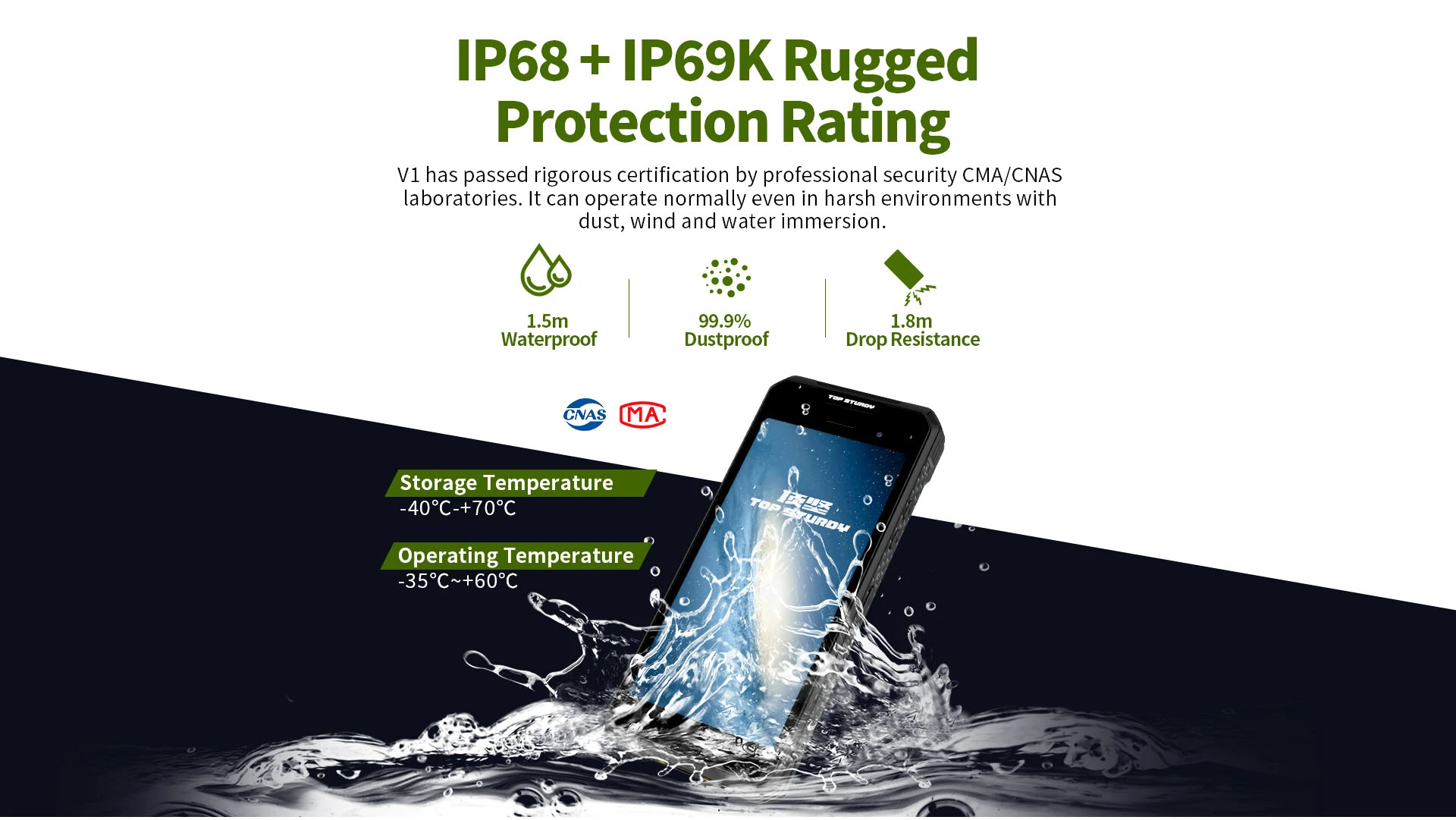

Protection level | IP68 |

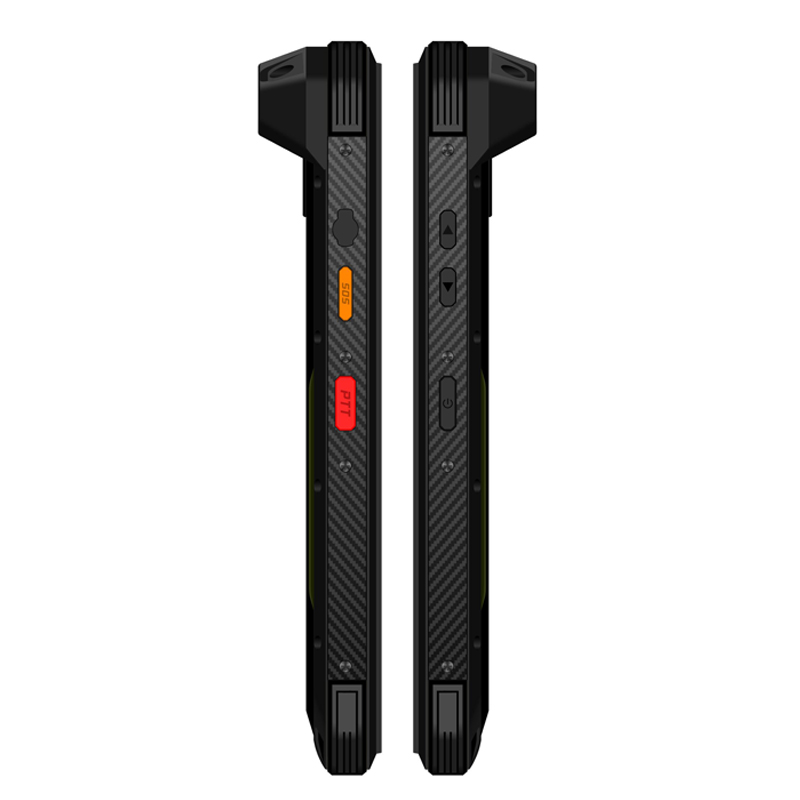

Buttons (physical buttons) | Volume keys, power on/off key, PTT key, S0S key, |

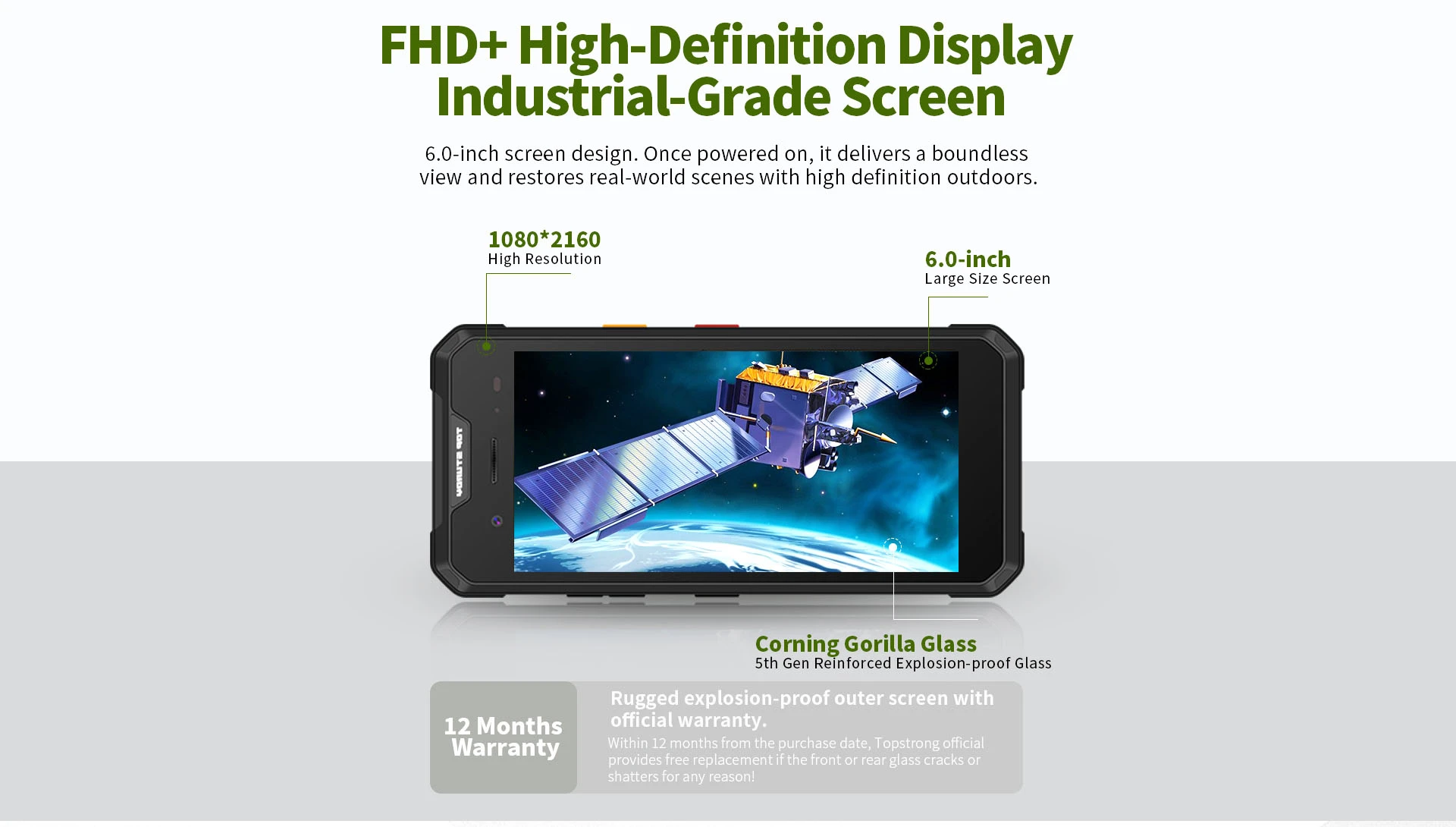

screen display | |
screen size | 6 inches |
resolution | FHD+ IPS 1080* 2160 |
touchscreen | Incell touch screen/supports glove touch |
Appearance material | American Corning fifth generation tempered glass |

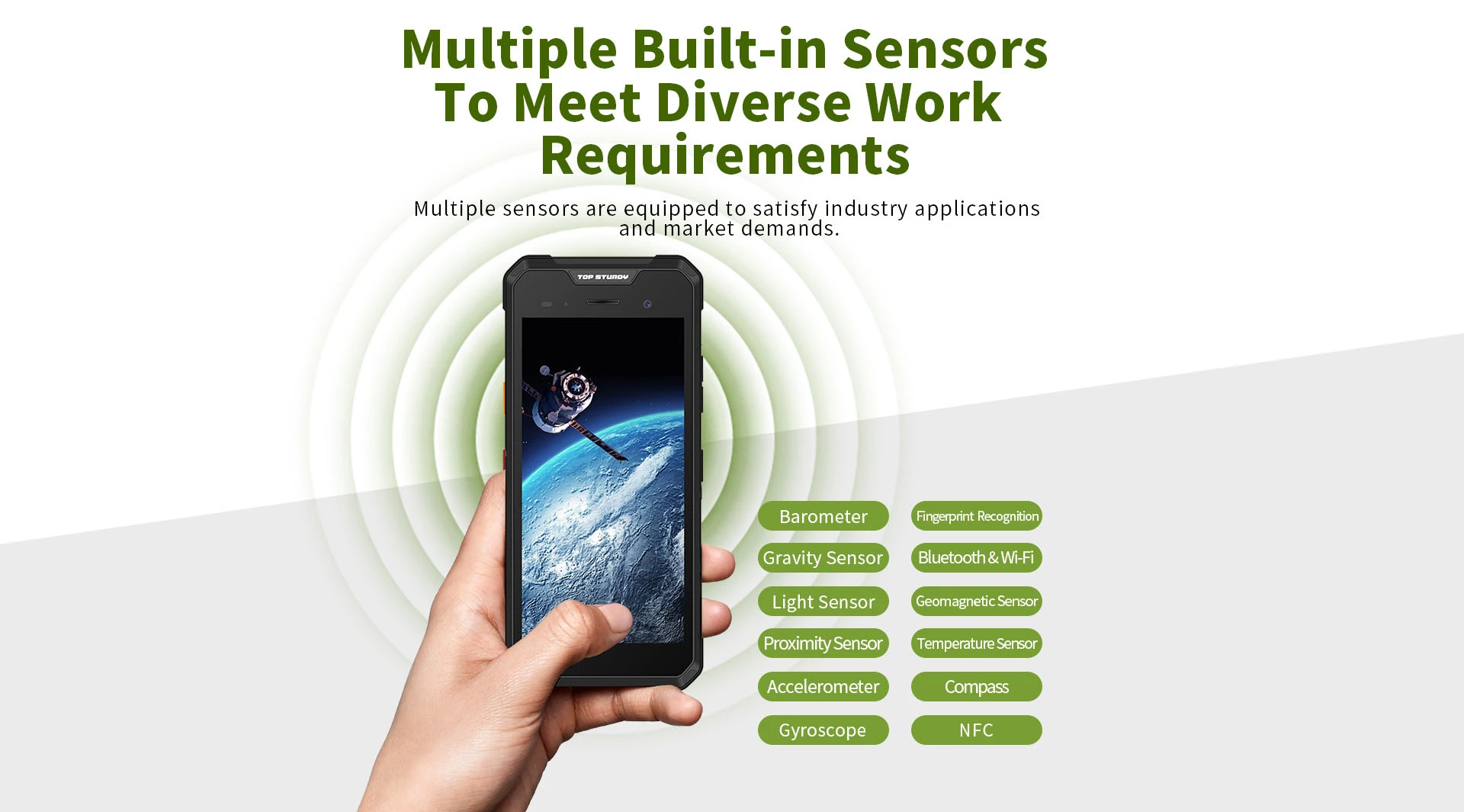

sensor | |
Gravity sensing | support |
light sensor | support |
distance sensing | support |
acceleration | support |
geomagnetism | support |
gyroscope | support |
Barometer | support |
thermometer | support |
Storage function | |
Body memory | 128GB ROM |
running memory | 6GB RAM |
Memory card type | Support T-Flash memory card (128G) |

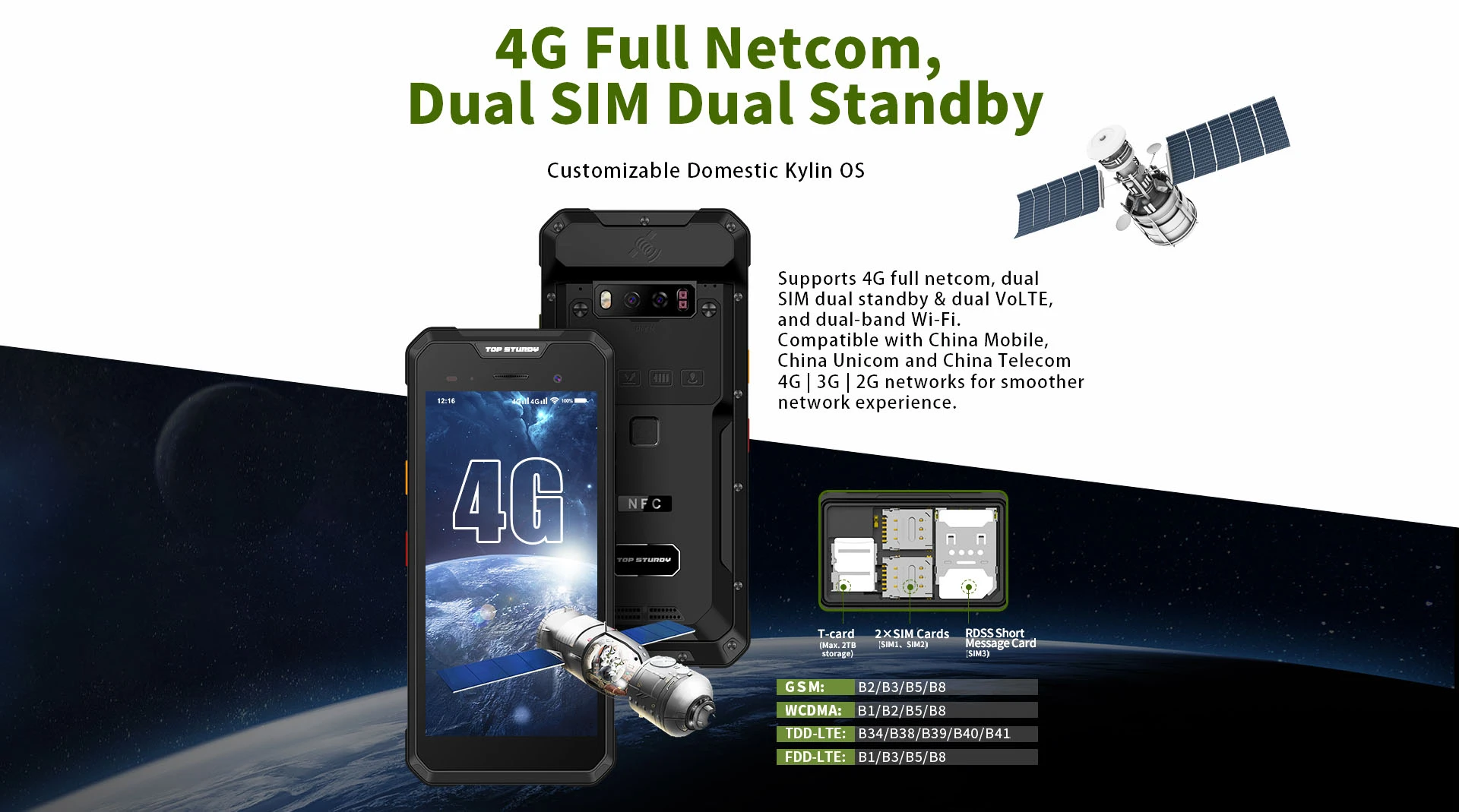

Network parameters | |
Public network format | All Netcom |
Public network frequency | GSM:B2/B3/B5/B8 WCDMA:B1/B2/B5/B8 TDD-LTE:B34/B38/B39/B40/B41 FDD-LTE:B1/B3/B5/B8 |
Public network operator | China Mobile/China Unicom/Telecom |
deck | 2 public network card holders (Nano sim card) 1个RDSS短报文deck（标准 sim卡） 1 TF card holder |

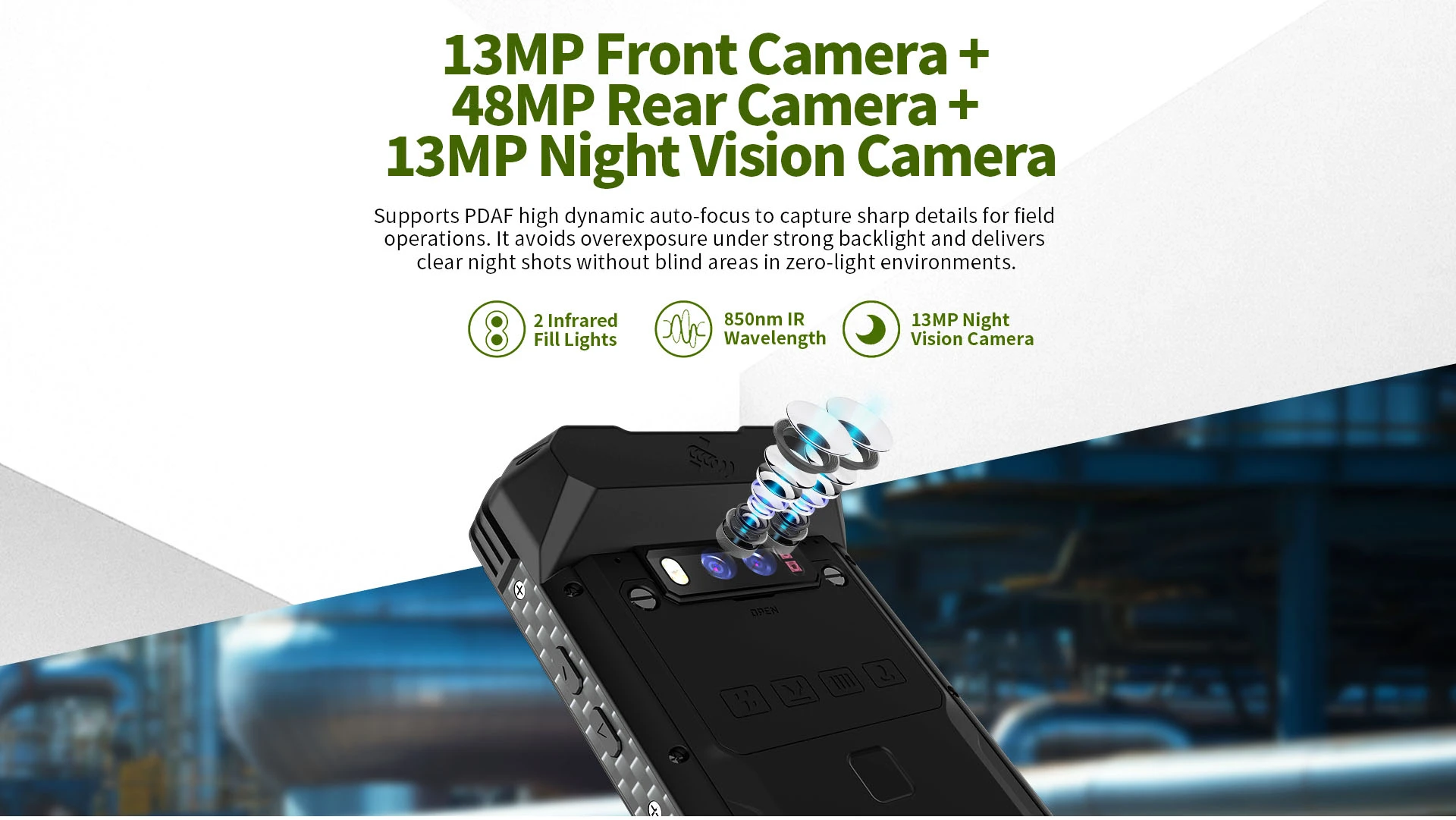

Camera function | |
main camera | 48 million supports PDAF |
front camera | 13 million |
night vision camera | 13 million |
Sensor type | CMOS |

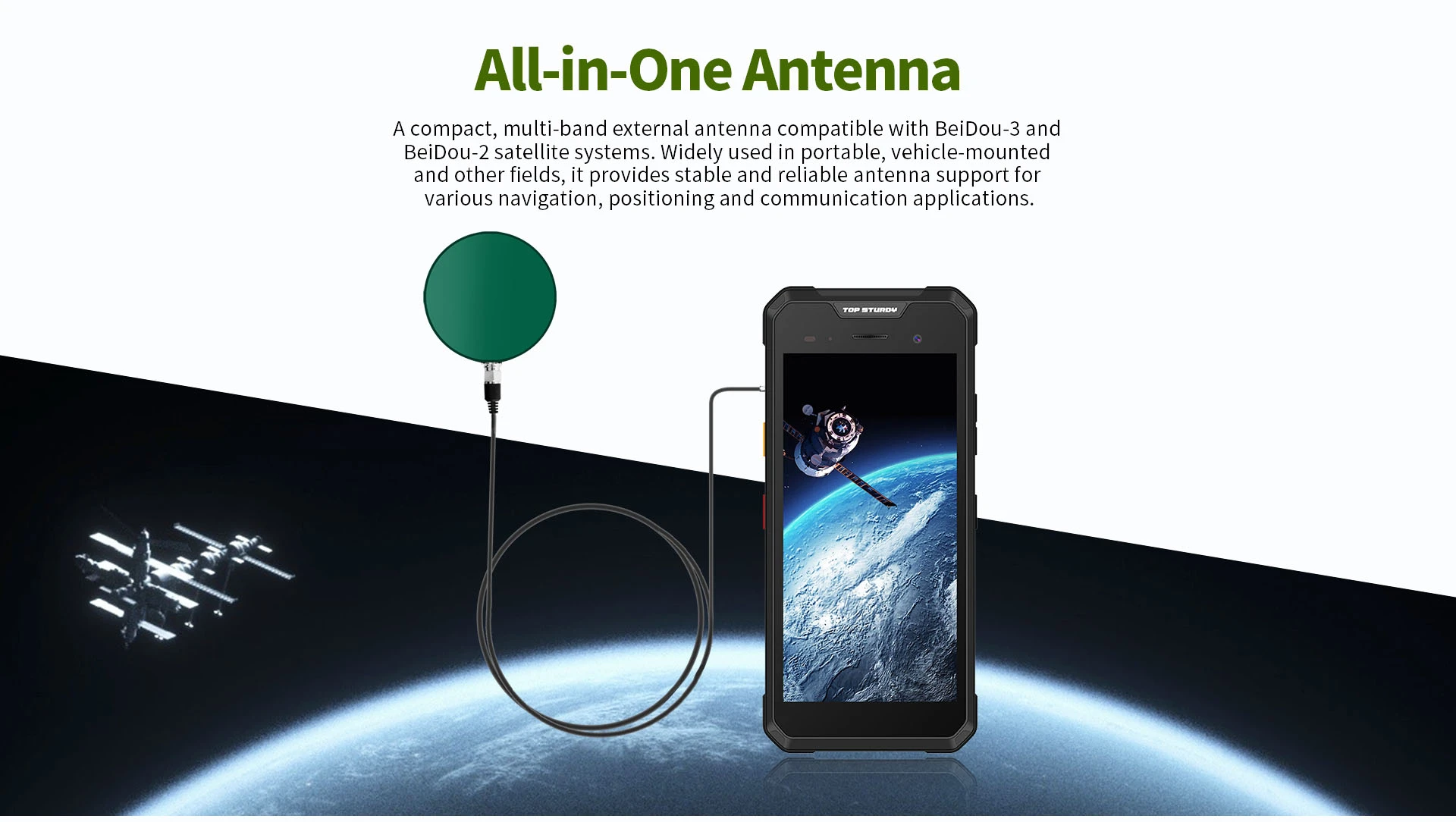

RNSS positioning | |
model | Support Beidou/GPS dual-mode positioning |
frequency | BDS B1I, B1C； GPS L1C/A (supports Beidou-3 satellite B1C signal) |
Positioning time | cold start: ≤31s cold start: ≤5s (AGNSS assisted positioning) |
Positioning accuracy | Single point 2.5M |
Data format | NMEA 0183 |
RDSSReceive | |
RF input frequency | S: 2491.75±8.16MHz |
Receive sensitivity | ≤-123dBm |
RDSS launch | |
RF output frequency | Lf1: 1614.26±4.08MHz |
Lf2: 1618.34±4.08MHz | |
Launch ERIP | 3dBW～9dBW communication success rate ≥95% (facing south without obstruction and interference) |
Modulation phase error | ≤3° |
carrier suppression | ≥30dBc |
Protocol version | Beidou User Machine Data Interface Protocol Version 2.1 |
Short message length | ≤1000 Chinese characters |
Transmission function | |
WIFI | IEEE 802.11a/b/g/n/ac, supports dual-band 2.4/5.8G, AP function, |
USB | TYPE-C interface, (9V2A) USB2.0, multiplexed with charging port, supports OTG and headphones, Beidou data reading |
Bluetooth | Support Bluetooth 5.0 (BLE) |
NFC | support |
Application function | |
Noise canceling function | support |
navigation | GPS+Beidou, network-assisted (LBS) positioning |
compass | support |

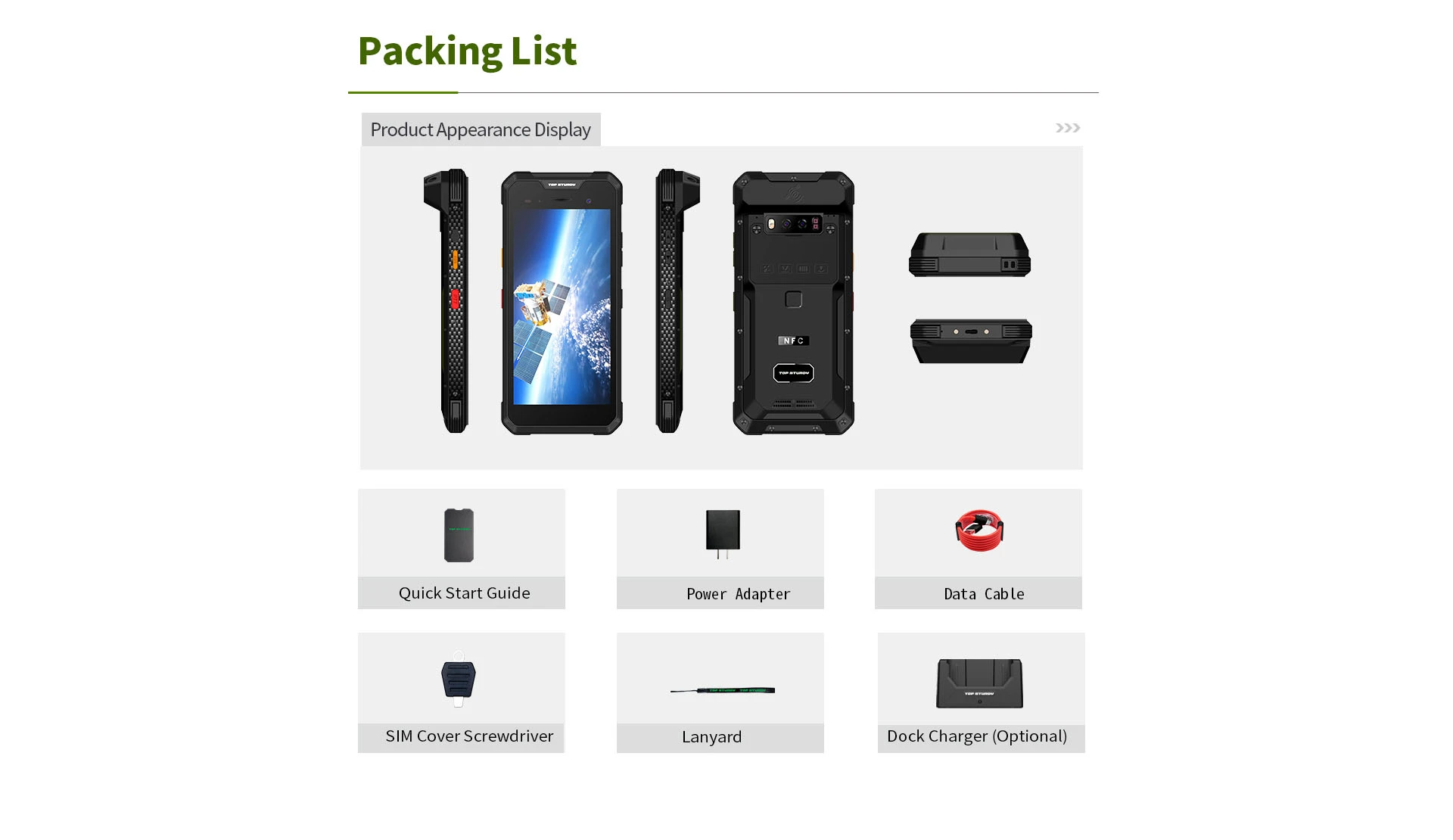

Accessories | |
charger | Chinese standard 9V2A |
Charging cable | TYEP-C |
cradle charger | Optional |
