The combination of Beidou short message, Tiantong satellite phone and Dingjian explosion-proof handheld terminal is my country's core technology system to achieve two-way communication in an environment without public network, especially in emergency rescue, field exploration, security operations and other scenarios, showing irreplaceable value. The following is an analysis from four aspects: technical principles, synergy advantages, application scenarios and development trends.:

1. Technical principles and core advantages

Beidou short message：
The unique short message function of the Beidou system enables two-way transmission of text and location data through satellite relay, and can send 1,200 words at a time (Beidou 3). Its advantage is that it does not rely on ground base stations, covers the world (especially with higher accuracy in the Asia-Pacific region), and supports encrypted communications, making it suitable for sensitive information transmission. For example, in earthquakes and floods, the rescue team can directly send coordinates and disaster briefings to the command center through Beidou handheld terminals.

Tiantong satellite phone：
China's independently developed mobile communication satellite system covers China and surrounding areas and supports voice, text messages, and low-speed data (such as Beidou-compatible SOS functions). Tiantong terminals (such as handheld devices and vehicle-mounted equipment) can seamlessly switch with terrestrial mobile networks and automatically access satellite links when there is no public network. Its voice call quality is stable, and its data transmission rate can reach 384kbps (Tiantong No. 1 01 star), which meets basic communication needs.

Dingjian explosion-proof handheld terminal：
Such terminals usually integrate Beidou + Tiantong dual-mode communication modules and are explosion-proof, waterproof, dustproof, and resistant to extreme temperatures and humidity (such as IP68 protection level). For example, in explosive environments such as oil and gas fields and chemical plants, explosion-proof design can prevent equipment from causing secondary accidents. ； In extreme climates such as polar regions and deserts, the wide-temperature battery and impact-resistant shell ensure that the equipment continues to work.

2. Collaborative working model

Dual link redundancy：
Beidou short message and Tiantong satellite phone complement each other - Beidou is good at short text and location reporting, and Tiantong supports voice calls and larger data transmission. In an emergency, users can use both at the same time to ensure the delivery of information (such as sending Beidou short message positioning first, and then communicating in detail through Tiantong phone).

Seamless switching mechanism：
Modern terminals (such as some Dingjian series) support automatic switching between "public network and satellite". When it detects that the public network signal is weak or interrupted, the device automatically activates satellite mode without manual operation, improving emergency response efficiency.

Explosion-proof and durable design：
The explosion-proof handheld terminal adopts intrinsically safe circuit design (such as limiting energy and isolating sparks), and has passed international explosion-proof certifications such as ATEX and IECEx to ensure safe use in flammable and explosive environments. At the same time, high-strength materials and wide-temperature batteries (-40°C to 80°C operating range) adapt to extreme environments.

3. Typical application scenarios

emergency rescue：
In disasters such as earthquakes, typhoons, and landslides, the rescue team reports the coordinates of the disaster point through Beidou short messages, and Tiantong calls to coordinate the allocation of supplies. For example, during the Jishishan earthquake in Gansu Province in 2023, Beidou short messages provided critical communication support for the disconnected area.

field work：

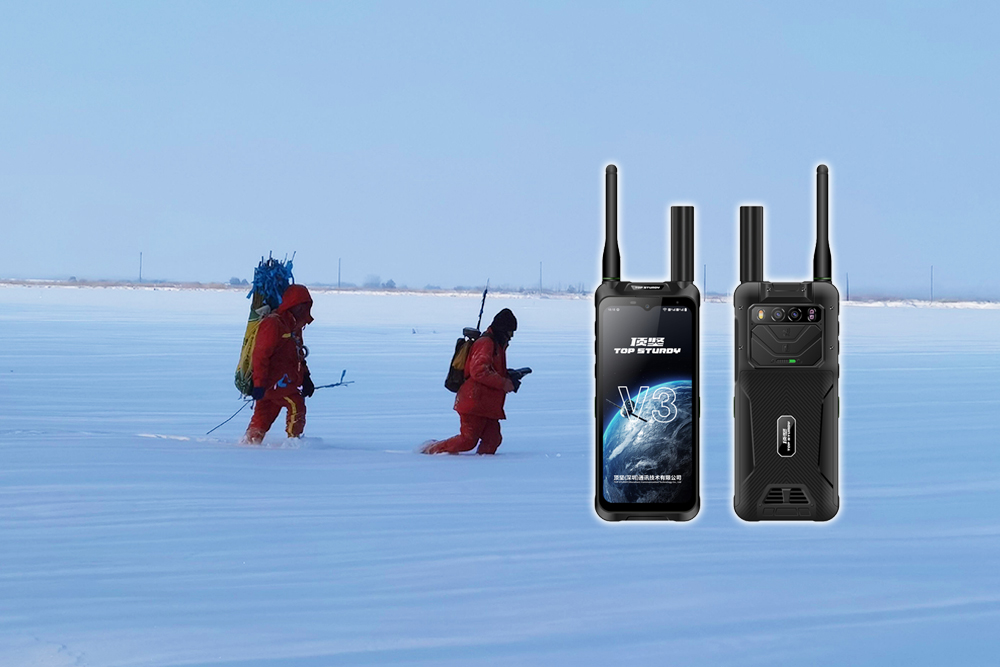

In scenarios such as geological exploration, oil and gas pipeline inspections, and polar scientific expeditions, Beidou + Tiantong are relied upon to achieve real-time communication in environments without public networks. For example, railway line inspectors on the Qinghai-Tibet Plateau can send inspection data to the rear platform through explosion-proof handheld terminals.

border security：
During border patrols and anti-terrorism operations, troops use explosion-proof terminals for covert communications to avoid signals being intercepted by the enemy. Beidou’s encrypted short message function is particularly suitable for transmitting tactical instructions.

Marine and Aviation：
When fishing boats and commercial ships are operating in the open sea, they communicate with the shore base through Tiantong satellite phone.； Small aircraft are equipped with BeiDou terminals that can send emergency signals when ground radar coverage is lost.

The combination of Beidou short message, Tiantong satellite phone and Dingjian explosion-proof handheld terminal is China's "national weapon" to achieve two-way communication in an environment without a public network. Through complementary technologies, explosion-proof and durable designs, and wide coverage, they have become a lifeline in emergency, field, military and other scenarios.

Dingjian focuses on the R&D, production and sales of three-proof communication products such as single Beidou handheld terminals, Beidou short message terminals, RTK high-precision positioning terminals, single Beidou explosion-proof intercom terminals, explosion-proof mobile phones, anti-confidential mobile phones, 5G single Beidou law enforcement recorders, satellite communication phones, etc. It supports customized Hongmeng systems, secondary development, and provides one-stop communication equipment application solutions.
